Electric Bowl Rack

Choose the Angel Particle B256Y Electric Bowl Organizer to say goodbye to kitchen storage woes. Transform your wall cabinets from “dormant storage spaces” into a source of everyday beauty within easy reach. With smart technology, revitalize your kitchen routine and unlock a more convenient and comfortable cooking and storage experience!

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Redefining Kitchen Storage Aesthetics

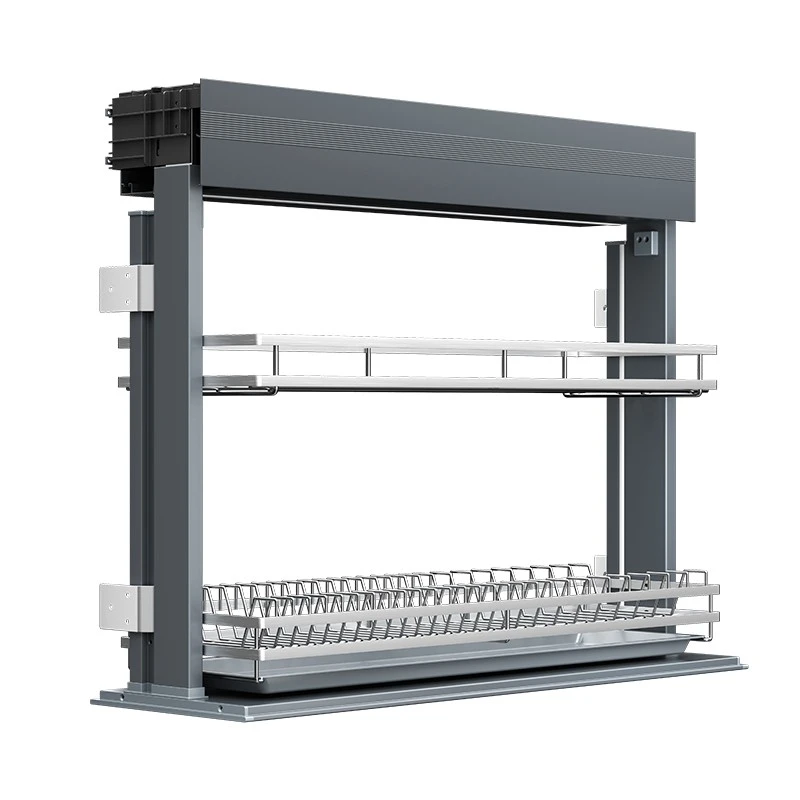

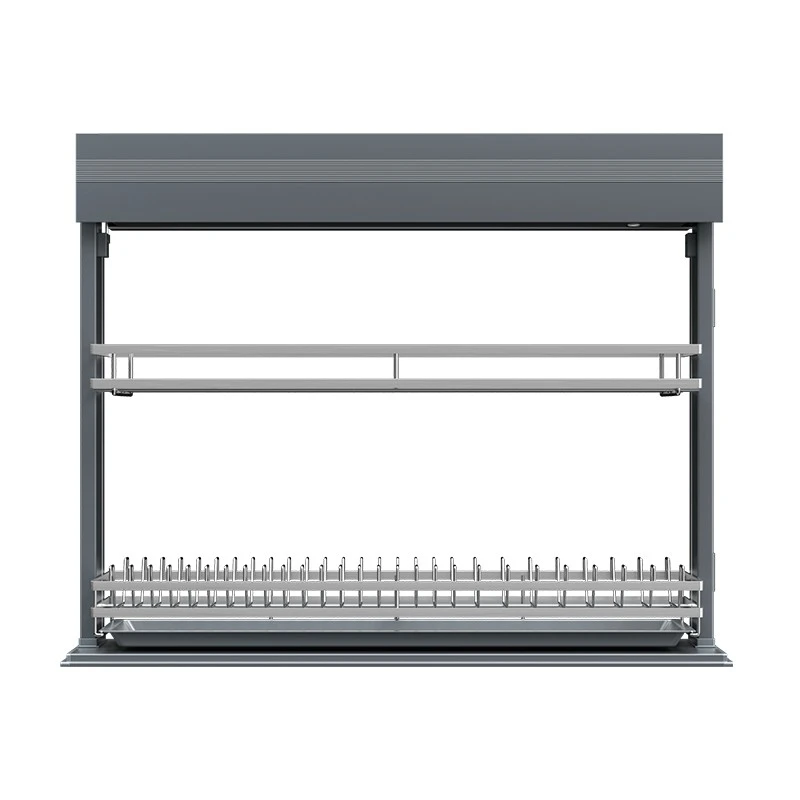

The B256Y is a smart dish rack that lifts up and is made for modern homes. It solves the problems that come with traditional wall cabinets, like being hard to reach and taking up too much space, by combining useful storage with the look of the kitchen. It works with many different types of homes and makes it easier to get dishes out and put them away while keeping countertops clean.

Design Philosophy: People-Centered, Practicality First

We came up with a really useful way to store things in the kitchen based on the four main ideas of "convenience, efficiency, safety, and aesthetics":

Efficient Space Utilization: It brings new life to empty space in upper wall cabinets, making the most of every square inch of storage.

Easy to Use: Shorter people don't have to stand on tiptoes or seniors don't have to climb up, which lowers the risk of accidents and keeps the family safe.

Tidy and Organized: Hides dishes away so that the countertop looks clean and uncluttered, which improves the overall look of the kitchen.

Less Bending: Put things away right after you wash them to make cooking easier and put less strain on your lower back.

Integrated Categorized Storage: A drip tray and layered storage for dishes keep wet and dry items separate to keep things clean.

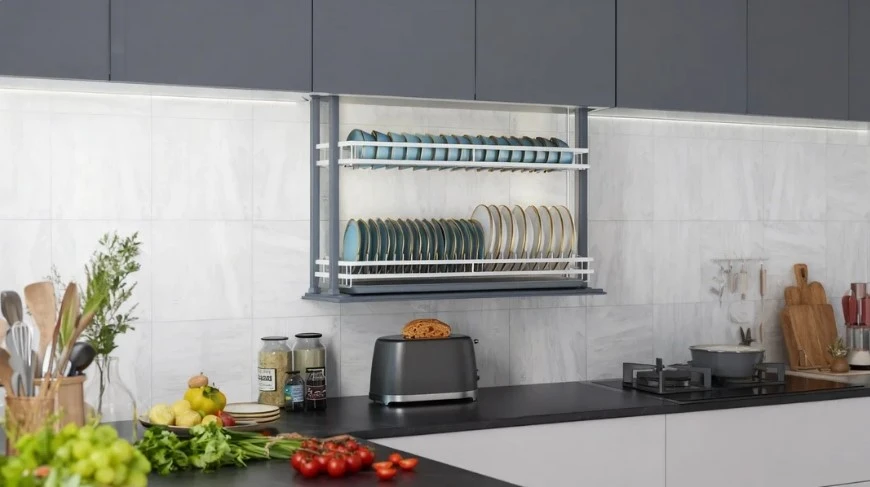

Suitable Settings: Beyond the Kitchen

Kitchen Cabinet Dish Rack works with different kinds of cabinets, like kitchen wall cabinets and dining room sideboards. It fits in with any home, whether you're trying to make the most of a small space or add more storage to a larger home, while still looking good.

Main Benefits: 6 Highlights, Quality at a Glance

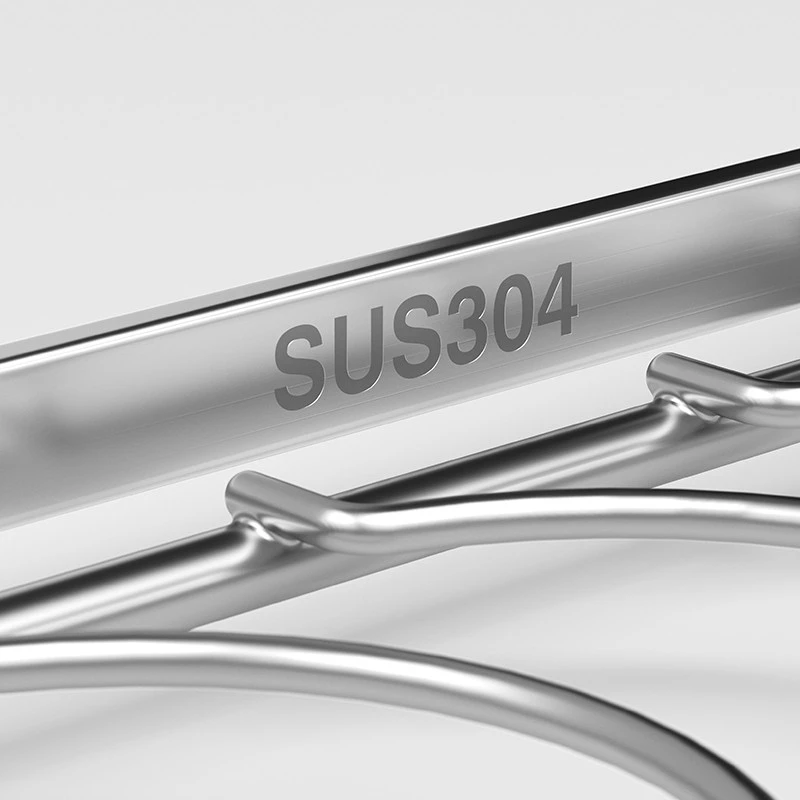

Aluminum Alloy of Aviation Quality

Strong structure that doesn't rust or bend, so it stays like new for a long time. Made to last longer in a humid kitchen environment

Smart One-Touch Stop

Rapid descent in 8 seconds for quick access, saving time on daily tasks. While the lift is running, it can stop at any height, which keeps things on the counter from moving.

Built-in lighting system

3D lighting on both sides + touch-activated lighting at the bottom, providing even illumination to brighten the storage area and make it easier to see when taking out or putting away dishes

Multi-Mode Control

You can use voice commands, a remote control, or the Tuda Smart App to control it in different ways.

Quiet and steady operation

High-power motor that runs quietly and doesn't make noise above 45dB; can lift up to 20kg without wobbling or shaking.

Anti-pinch system

Automatically goes down if it hits something while going up, which is a smart safety feature that keeps people from getting hurt by mistake.

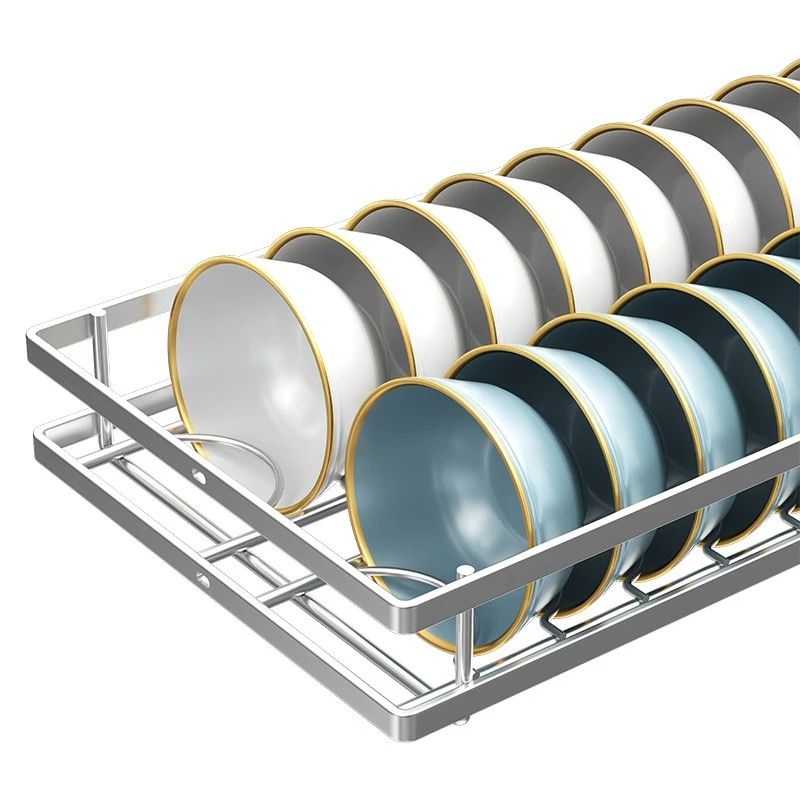

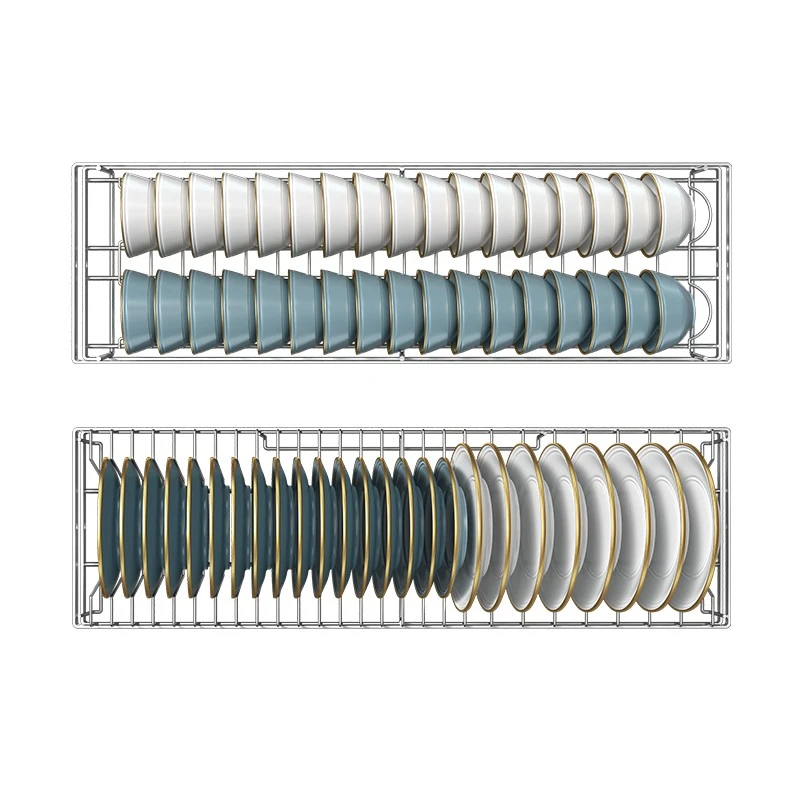

Aviation aluminum alloy material Large-capacity storage Details of electric lifting bowl basket

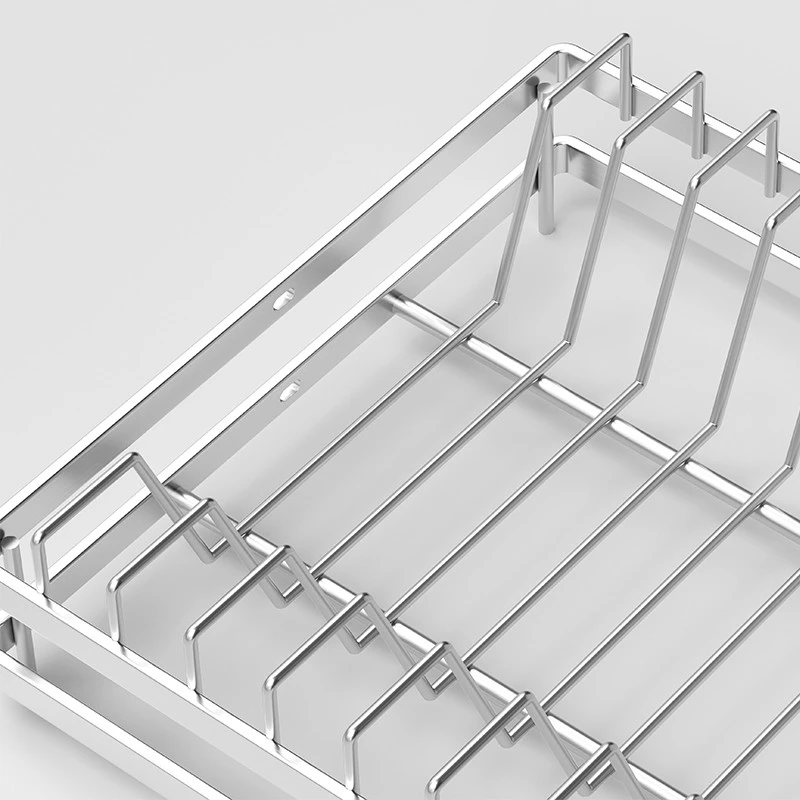

Bowl rack material Bowl rack details Electric lifting bowl basket

Smart Voice Control: You can use it without your hands, which makes it easier to use.

Voice assistant that works with smart devices. To turn it on, say "Xiaotian," and then you can give it commands right away, within 10 seconds, without having to wake it up again. You can easily control it even when your hands are full of dishes from the Electric Dish Rack.

Some common commands are:

Rise: "Xiaotian, start rising" (Shortened: Rise, Machine rise)

Lower: "Xiaotian, start lowering" (Shortened: Lower, Lower the machine)

Stop: "Xiaotian, stop" (Shortened: "Stop Rising")

"Xiaotian, turn on the lights" (Shortcut: "Turn on the lights, turn on the lights")

Supports wake-up words that can be changed; easy to use and fits your personal habits

Voice intelligent control

Product Specifications

Item	Parameter	Item	Parameter
Product Name	Electric Lift-Up Storage Mechanism for Kitchen Cabinets	Product Model	B256Y
Start Switch	Touch-activated	Load Capacity	20 kg
Lifting Stroke	550–580 mm	Lowering time	8 s
Product Material	Aviation-grade aluminum alloy	Light color temperature	4000K
Fatigue Test	30,000 cycles of normal operation	Input Voltage	100–240 V
Product Power	60W	Light strip position	Both sides + bottom
Product Noise Level	45 dB	Safety System	Anti-pinch system

smart dish rack

Cabinet Dimensions and Installation

Compatible Cabinet Dimensions (Unit: mm)

Specifications	Cabinet Internal Width	Cabinet Interior Height	Base Plate Cutout	Top Opening
B256-400	364	664	256	20
B256-500	464	664	256	20
B256-600	564	664	256	20
B256-700	664	664	256	20
B256-800	764	664	256	20
B256-900	864	664	256	20

Reminder for Installation

Before you install, make sure there is a power outlet nearby.
Beforehand, a cutout must be made in the cabinet base. The options are 256, 190, or 134 mm, depending on how deep the cabinet is.
It comes with an installation guide and video tutorials to make it easy to set up.

List of Parts

No extra purchases are needed; it's ready to install right out of the box:

One 12V 5A power adapter

One installation screw

One ladder lift

One installation manual

Safety measures

You should only use this product inside because it is not waterproof. Don't wash the mainboard with water.

To avoid damaging the mainboard because of unstable current, please use the original adapter.

If something goes wrong, first check to see if the power supply and cabinet cutouts are up to standard. If they are not, call customer service for help.

Help after the sale

The whole unit is covered by a 10-year warranty, and a professional after-sales team is available to help you with any problems you may have.

FAQ

01.What sizes of cabinets will this product fit in?

The B256Y comes in cabinet widths from 400mm to 900mm, and the inside height of the cabinet must be at least 664mm. For exact cutout sizes, see the table called "Cabinet Dimensions and Installation." Before you install the cabinet, please check the size and make sure you can get power to it.

02.Is it hard to set up? Do I need to hire a pro to install it?

The product comes with step-by-step installation instructions and video tutorials. Just follow the steps to finish the installation. We suggest getting help from a professional if you don't know how to do electrical work to make sure the power connections are safe.

03.What is the most weight it can hold? How many plates and bowls can it hold?

It can hold 44 bowls and 24 plates, and it can hold up to 20 kg. This is enough space for all the bowls, plates, and dishes that a family needs every day.

04.Is it possible to stop the lifting process at any time?

Yes. It has a "press-to-stop" feature. You can stop at any height by simply letting go of the button while the lift is going up. This makes it easy to get things or put them back without having to stop using the countertop.

05.Is it possible to use it by hand when the power goes out?

Because this is an electric lift, it won't work on its own when the power goes out. We suggest that you manually get or put things back during a power outage. Normal operation will start up again once the power is back on.

06.Can the lights be turned on and off separately?

Yes. You can turn the lights on and off by touching the switch at the bottom or giving voice commands like "Turn on the lights" or "Turn off the lights." You don't have to change the height, which makes it easy to use every day.
